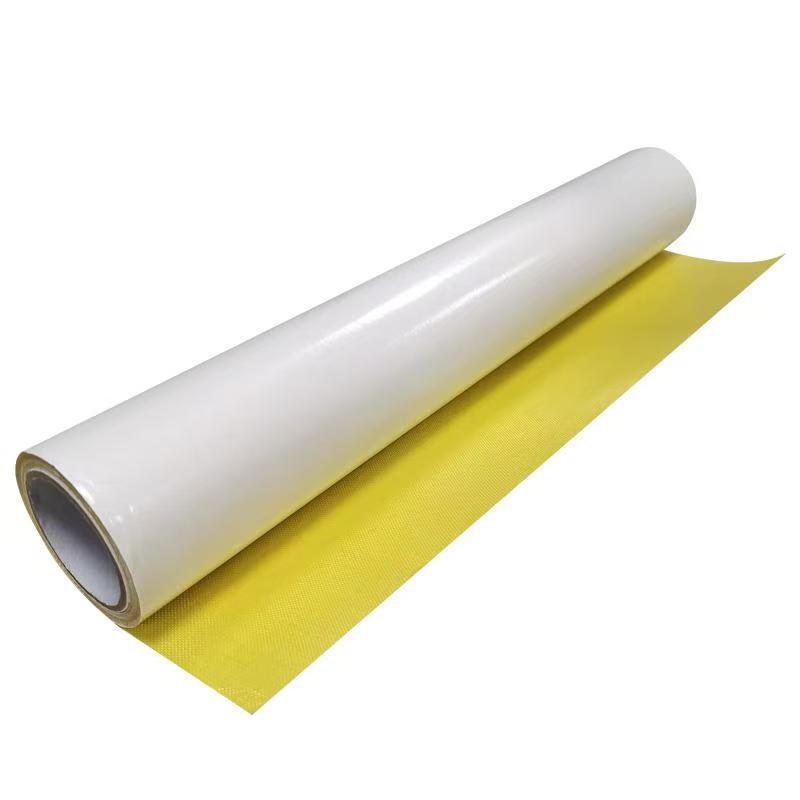

FXHX220 Plate Mounting Double Sided Tape

FXHX220 features excellent dimensional stability and high tensile strength, ensuring secure plate mounting even during high-speed printing operations. It offers outstanding conformability, stable adhesion, easy removal with minimal adhesive residue, and effectively enhances print clarity and registration accuracy. It is widely used in packaging, label, and flexible packaging printing applications.

Contact Us

Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Feature：

Strong adhesion without edge lifting or displacement.
Plate removal is easy and labor-saving, leaving no residue.
Surface is uniform with excellent conformability during lamination.

Application：

Ideal for printing applications such as cartons, woven bags, books and periodicals.
Widely used for material bonding, die-cutting and mounting flexographic, rubber,resin plates.
Suitable for various printing tasks, including flexo post-printing of corrugated cardboard, flexo film printing with compressible sleeves, letterpress label printing, etc.

Storage：

Please be sure to keep the tape in its box when not using.
The ideal application temperature range is 20℃ to 40℃.
Keep in a cool and dark place away from direct sunlight.

Test Method：

In accordance with GB/T 4851-1998 method.

Model No.	FXHX220
Backing material	Yellow Fiber Cloth
Total thickness	0.22mm
Adhesive	Holt Melt Pressure Sensirive Adhesive
Release Paper Color	White
Loop Tack	≥28#
180°Peel Adhesion	20N/25mm
Holding Power	8H/25mm
