Double-Sided Tape Roll Engineered for Industry
Choosing the right double-sided tape roll is rarely about which product has the loudest claim on a distributor’s shelf. For electronics assemblers, foam converters, and automotive tier suppliers, the real question is whether the industrial adhesive tape can hold under heat, shear, and the production line’s constant pull. F6 Tapes answers this with its F500 Heat Resistance Tissue Double Sided Tape—a 0.10 mm flexible tissue carrier coated on both sides with acrylic pressure-sensitive adhesive, engineered for the bonding of foam materials and validated to GB/T 4851-1998 holding power methodology.
Why Holding Power, Not Peel, Defines an Industrial Double-Sided Tape Roll
When procurement teams specify an industrial adhesive tape, they tend to fixate on peel strength. But peel only tells half the story. The true test of a double-sided tape roll is holding power—the tape’s ability to resist displacement when a constant load is applied along its length.
GB/T 4851 (the Chinese national standard test method for holding power of pressure-sensitive adhesive tapes) defines holding power as the resistance of an adhesive tape to displacement when a weighted load is hung vertically from the tape affixed to a substrate, measured by the time taken for the specimen to move a certain distance or the distance moved within a certain time. The 1998 edition—which F500 is tested against per F6’s product documentation—uses a stainless steel test plate, a 2000 g ± 50 g rubber-covered pressure roller, and a 1000 g ± 10 g loading mass.
This is the test that separates a double-sided tape roll built for industrial use from one built for office stationery. F500 delivers up to 80℃ for 60 minutes of holding power—meaning it sustains shear load at elevated temperature for a full hour without failing. For B2B buyers, that single data point speaks louder than any marketing language.
The Engineering Profile of F500
F500’s credibility as an industrial adhesive tape comes from its measurable parameters:
- Total thickness: 0.10 mm (liner: 0.08 mm)—thin enough for tight bond lines in electronics
- Width range: 10 mm to 1020 mm, customizable to production needs
- Length range: 50 m to 500 m per roll—long-run convenience for converting operations
- Carrier: Flexible tissue paper, easily die-cut and laminated
- Adhesive: Acrylic pressure-sensitive adhesive with high initial tack (20#) and 180° peel adhesion of 20 N/25 mm
- Temperature resistance: -20℃ to 100℃ continuous; 80℃ short-term
- Compliance: Passed RoHS, REACH, and VW50131 testing
- Shelf life: 12 months at 23℃ and 65% relative humidity
The acrylic pressure-sensitive adhesive chemistry gives F500 excellent performance under a wide temperature range, coupled with weather resistance and chemical resistance. Its high adhesion with a good balance of holding power and tack makes it especially suited for foam materials—PE, EPDM, PET, and particularly PU foam.
How F500 Compares with Commercial Alternatives
For procurement managers, hard-parameter comparison is the fastest path to a confident decision. The following tables contrast F500 with representative industrial double-sided tissue tapes in the global market.
Core Specifications
| Dimension | F6 F500 | 3M C1173 | AxisTape 8010 | Naikos NKS-##DT |
|---|---|---|---|---|
| Total thickness | 0.10 mm | 0.100 mm (±0.02) | 0.10 mm | 0.10-0.16 mm |
| Carrier | Tissue paper | Non-woven tissue | Tissue | Non-woven tissue |
| Adhesive | Acrylic PSA | Acrylic | Solvent acrylic | Acrylic (solvent/hot melt/water) |
| 180° peel (N/25 mm) | 20 N/25 mm | 52 N/100 mm (≈13 N/25 mm) | 16 N/25 mm (≈64 N/in) | ≥14 N/25 mm |
| Initial tack | 20# | High initial tack | Excellent | Immediate |
| Temp. resistance | -20℃ to 100℃ | 60-70℃ long term, 80-120℃ short term | -20℃ to 120℃ | 80-160℃ (solvent acrylic) |
| Holding power | 80℃ for 60 mins | Not specified | Good high-temp holding | >24 hrs @ constant load |
| Roll length | 50-500 m | Standard jumbo | 50-100 m | Custom |
| Width range | 10-1020 mm | Standard slitting | 1220 mm master | 2-1240 mm |
F500’s 20 N/25 mm peel strength positions it competitively against 3M C1173 (≈13 N/25 mm) and AxisTape 8010 (≈16 N/25 mm equivalent), while its 50-500 m roll length offers significantly longer runs than the 50-100 m standard rolls from AxisTape. For high-volume converting operations, fewer roll changes mean less downtime.
Application Focus and Compliance
| Dimension | F6 F500 | AxisTape Tissue Series | Naikos High Adhesion | Danco DAN6690 |
|---|---|---|---|---|
| Foam bonding | PE, EPDM, PET, especially PU | Foot pads, cushioning | PP, PE, PVC automotive plastics | Not specified |
| Electronic assembly | Panel combination, OA equipment | Membrane switch, appliance panels | Computer components, LED strips | Lightweight metal/plastic mounting |
| Automotive | VW50131 passed | Not specified | Dashboard trims, molded plastics | Not specified |
| Splicing | Not specified | Plastic film, material splicing | High-speed web splicing | Film, foil, paper splicing |
| Compliance | RoHS, REACH, VW50131 | Not specified | RoHS, REACH | Not specified |
| Heat exposure | 80℃ short-term | -20℃ to 120℃ | 60-160℃ | Up to 120℃ |
| Die-cutting | Yes (tissue carrier) | Yes | Clean die-cut, automated | Hand-tearable |
F500’s VW50131 compliance is a differentiating credential — it validates the tape for automotive-industry panel bonding applications, a bar that none of the compared alternatives explicitly meet. Combined with RoHS and REACH, F500 covers the compliance checklist for electronics and automotive B2B buyers in European and North American markets.
Production Economics
| Factor | F6 F500 | Market typical |
|---|---|---|
| Roll length | 50-500 m | 50-100 m (AxisTape, Danco), jumbo rolls variable (Naikos) |
| Master width | 1020 mm | 1220 mm (AxisTape, Naikos) |
| Custom slitting | 10-1020 mm range | 2-1240 mm (Naikos), 3-1200 mm (others) |
| Convertibility | Tissue carrier, easy die-cutting | Tissue/non-woven, die-cut compatible |
| Storage | 12 months @ 23℃/65% RH | 12 months typical |
| Manufacturer | F6 Tapes, two modern factories | Varied; 3M global, regional specialists |
F500’s up to 500 m roll length is a standout for high-volume production. While competitors like AxisTape and Danco standardize at 50-100 m rolls, F500’s extended length reduces roll-change frequency on converting lines — a meaningful but often overlooked productivity factor.
Specifying F500 for the Application
A professional double sided tape roll must adapt to the deployment scenario. Based on F500’s documented capabilities, the primary use cases include:
Foam Material Bonding
F500 is especially engineered for the bonding of foam materials — PE, EPDM, PET, and particularly PU foam. Its 0.10 mm thickness and high adhesion level make it ideal for foam-to-foam and foam-to-substrate lamination in automotive interiors, appliance insulation, and cushioning products.
Electronics and OA Equipment
F500 is used in panel combination for the electronic industry, OA equipment, and electrical appliances. Its thin bond line, 20 N/25 mm peel strength, and acrylic PSA chemistry deliver reliable assembly for device panels, display mounting, and internal component fixation.
Process Industry Bonding
In the process industry, F500 handles the bonding of rubber strips and plastics. Its temperature resistance range of -20℃ to 100℃ (80℃ short-term) accommodates moderate heat exposure during operation.
Die-Cutting and Converting
The flexible tissue paper carrier allows F500 to be easily slit, laminated, and die-cut into custom shapes for automated assembly lines. Master rolls up to 1020 mm wide and 500 m long feed high-throughput converting operations without frequent roll changes.
The Specification Conversation: What Your Tape Supplier Should Discuss
A credible industrial adhesive tape supplier begins every project with engineering questions:
- Substrate pair — foam-to-foam, foam-to-metal, plastic-to-plastic, or film lamination determines adhesive chemistry
- Operating temperature — continuous vs. short-term peak exposure defines temperature resistance requirements
- Bond line thickness — 0.10 mm F500 vs. thicker alternatives for gap-filling applications
- Shear load — constant load over time (holding power) vs. dynamic peel stress
- Compliance framework — RoHS, REACH, VW50131 for automotive/electronics; GB/T 4851-1998 for holding power validation
- Roll configuration — width (10-1020 mm), length (50-500 m), core size, and packaging for the operational workflow
- Converting method — slitting, die-cutting, lamination, or automated dispensing
- Shelf life and storage — 12 months at 23℃ and 65% relative humidity per F6 specifications
- Volume and cadence — monthly demand, seasonal peaks, and warehouse constraints
F6 Tapes’ engineering team addresses each of these dimensions, leveraging the company’s two modern factories and strict quality control systems to ensure stable product performance and reliable delivery.
Why the Manufacturer’s Total Capability Matters
When procurement teams select a double sided tape roll, several commercial risks must be mitigated:
- Batch consistency risk — does the manufacturer enforce standards from raw material to finished product? F6’s strict QC systems address this directly
- Compliance risk — can the tape meet RoHS, REACH, and VW50131? F500 passes all three
- Technical breadth risk — can the supplier support adjacent tape requirements? F6’s full adhesive tape portfolio spans industrial double-sided, foam, holding, duct, and specialty tapes
- Convertibility risk — can the tape be slit, die-cut, and laminated without edge bleeding or fiber tear? F500’s tissue carrier is engineered for clean converting
- Supply reliability risk — can the manufacturer deliver at scale? F6’s two modern factories provide the capacity buffer
GB/T 4851 reminds the industry that holding power — not peel strength alone — is the definitive measure of a pressure sensitive tape’s reliability under load. A supplier that tests and validates to this methodology, and validates product performance accordingly, becomes a true engineering partner rather than a roll provider.
Frequently Asked Questions
Q: What does GB/T 4851 measure for a double sided tape roll?
A: GB/T 4851 is the Chinese national standard test method for holding power of pressure sensitive adhesive tapes. It defines holding power as the resistance of an adhesive tape to displacement when a weighted load is hung vertically from the tape affixed to a substrate, measured by the time taken for the specimen to move a certain distance or the distance moved within a certain time. F500 is tested in accordance with GB/T 4851-1998 and delivers up to 80℃ for 60 minutes of holding power, validating its performance under elevated temperature shear load.
Q: Why is acrylic pressure sensitive adhesive important for an industrial double sided tape roll?
A: Acrylic pressure sensitive adhesives provide high adhesion, excellent initial tack, and a good balance of holding power and peel strength (20 N/25 mm for F500). They offer excellent performance under a wide temperature range (-20℃ to 100℃ for F500), along with weather resistance and chemical resistance. This chemistry makes acrylic PSA ideal for foam bonding, electronics assembly, and process industry applications where long-term reliability is critical.
Q: How does F500 perform on foam materials?
A: F500 is especially engineered for the bonding of foam materials — PE, EPDM, PET, and particularly PU foam. Its 0.10 mm thickness, high initial tack (20#), and 20 N/25 mm peel strength deliver strong, lasting bonds on foam substrates. This makes F500 suitable for automotive interior foam components, appliance insulation, and cushioning product assembly.
Q: Under which compliance standards is F500 validated?
A: F500 has passed RoHS, REACH, and VW50131 testing. RoHS and REACH compliance ensures the tape meets European chemical substance restrictions for electronics and consumer products. VW50131 is a Volkswagen Group standard for adhesive tape in automotive applications, validating F500 for panel combination and interior bonding in automotive manufacturing. These three credentials collectively address the compliance checklist for B2B buyers in regulated industries.
Making the Right Double Sided Tape Roll Decision
Selecting a double sided tape roll is a long-term operational decision. The wrong choice surfaces as edge lifting, foam delamination, failed panel bonds, and production line stoppages that erode profit margins. The right choice becomes invisible: bonds hold, substrates stay laminated, and the converting line runs without interruption.

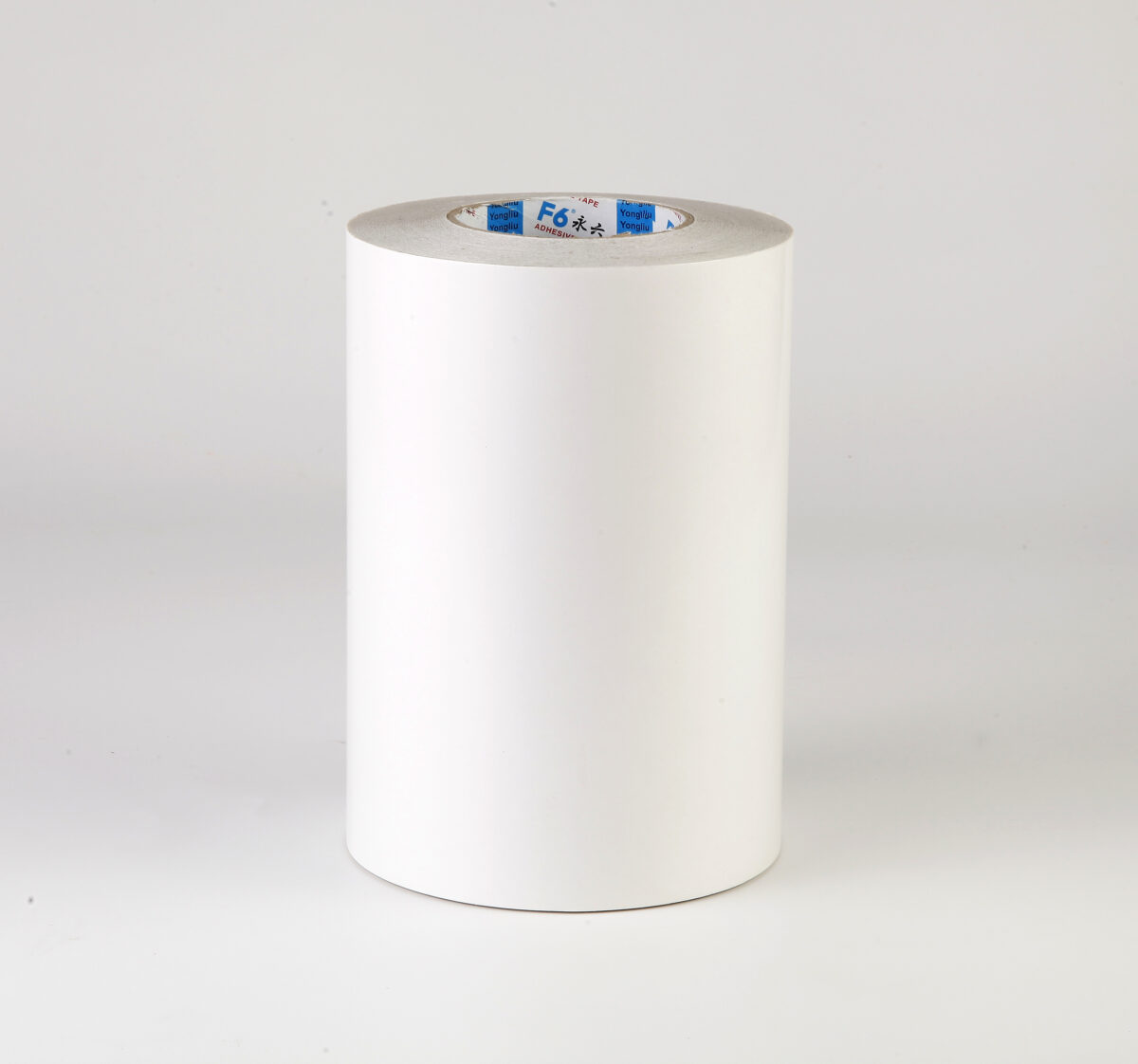

F6 Tapes’ F500 Heat Resistance Tissue Double Sided Tape combines a 0.10 mm flexible tissue carrier, acrylic pressure sensitive adhesive with 20 N/25 mm peel strength, up to 80℃ for 60 minutes of holding power, -20℃ to 100℃ temperature resistance, and RoHS/REACH/VW50131 compliance into a single product engineered for industrial realities. With master rolls up to 1020 mm wide and 500 m long, F500 is built for high-volume converting operations that demand both performance and productivity.
To discuss your double sided tape roll requirements, request product samples, or obtain a customized quotation for your specific substrate and environmental conditions, visit f6tape.com and review the F500 product page directly. A well-specified industrial adhesive tape is the foundation of every reliable bond, and the specification process should begin today.
References
- F6 Tapes, F500 Heat Resistance Tissue Double Sided Tape — product specifications. https://f6tape.com/product/f500-heat-resistance-tissue-double-sided-tape/
- Standardization Administration of China, GB/T 4851-1998 Test method for holding power of pressure sensitive adhesive tapes — full text via GB/T 4851 national standard. https://openstd.samr.gov.cn/
- 3M Technical Data Sheet, 3M Double Coated Tissue Tape C1173. https://multimedia.3m.com/mws/media/1746905O/c1173-technical-data-sheet.pdf
