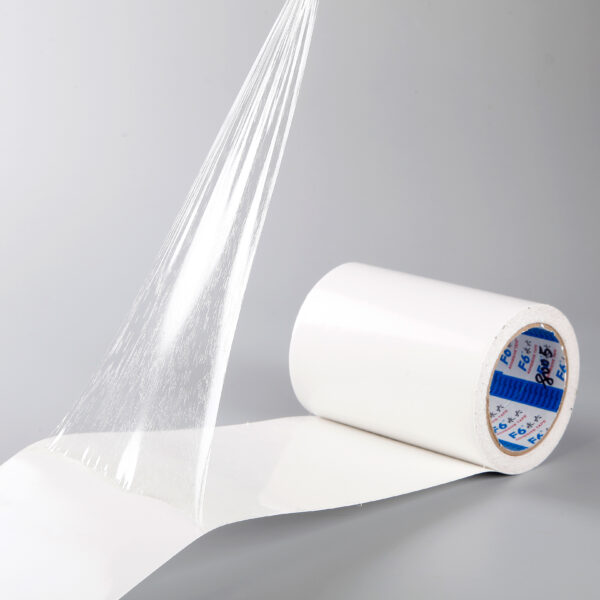

F805A Transfer Double Sided Tape

F805A is a transfer tape (non-carrier type) which consists out of a Water-based pressure sensitive adhesive, intended for use as a general mounting tape where a particular high adhesion level on low surface energy substrates is required.

Contact Us

Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Feature：

High adhesion strength on various kinds of plastic materials and metal surfaces.
Heat Resistant & Aging Resistant
Reduce pollution & Breathable

Application：

Bonding metal nameplates, serial and rating plates.
Lamination to industrial foams for rotary die-cutting.
Automotive, appliance and electronics markets.

Storage：

Please be sure to keep the tape in its box when not using.
The ideal application temperature range is 20℃ to 40℃.
Keep in a cool and dark place away from direct sunlight.

Test Method：

In accordance with GB/T 4851-1998 method.

Model No.	F805A
Backing material	No Carrier
Adhesive	Water-based Pressure Sensitive Adhesive
Color	White
Total thickness	0.06mm
Liner thickness	0.11mm
Width	10mm-1020mm
Length	50m-300m
Temperature resistance range	-10℃-80℃
Temperature resistance short term	100℃
Temperature resistance long term	60℃
Loop Tack	≥25#
Holding Power	Up to 100℃ for 120 min.
180° Peel Adhesion	11.28N/25mm
