Waterproof Adhesive Tape for Filter Sealing

Choosing the right waterproof adhesive tape​ is rarely about the tape alone—it is about whether your filter cartridges survive pressure cycling in RO systems, whether your air filter elements maintain dimensional stability through years of service, and whether your oil and fuel filter encapsulation prevents leakage under hydrocarbon exposure. For B2B buyers in water purifier manufacturing, air filtration, and fuel/oil filtration, the waterproof adhesive tape​ you specify determines whether your filter elements maintain structural integrity across the full chemical exposure envelope of the target environment. F6 Tape engineers F003 with RO film backing and synthetic rubber adhesive, delivering 6.5 N/25 mm 180° peel adhesion and ≥15# loop tack—purpose-built for fixing, sealing, edging, and structural reinforcement of filter elements.

Why FDA 21 CFR 175.105 Governs Filter Tape Selection

The single most overlooked criterion when evaluating a waterproof adhesive tape​ for filter element encapsulation is conformance to U.S. FDA regulations for adhesives in food and water contact applications.

FDA 21 CFR 175.105—Adhesives establishes that adhesives may be safely used as components of articles intended for use in packaging, transporting, or holding food, provided the adhesive is prepared from optional substances named in the regulation and either separated from food by a functional barrier or used subject to prescribed limitations. For fatty and aqueous foods, the quantity of adhesive that contacts the food shall not exceed the trace amount at seams and at the edge exposure between packaging laminates that may occur within the limits of good manufacturing practice, and under normal conditions of use, the packaging seams or laminates will remain firmly bonded without visible separation. The regulation further mandates that the label of the finished adhesive container bear the statement “food-packaging adhesive.” For filter tapes deployed in potable water or food-and-beverage rinse water applications, 21 CFR 175.105 provides the baseline compliance framework.

When your RFQ reaches a waterproof adhesive tape​ supplier, the first qualification question must be, “Have your adhesive components been evaluated against 21 CFR 175.105, and does your formulation remain firmly bonded under the trace exposure limits the regulation permits?” F6 Tape’s F003 is built on RO film backing with synthetic rubber adhesive, engineered for water resistance, acid and alkali resistance, and aging resistance—the foundational chemical property envelope that 21 CFR 175.105 evaluates.

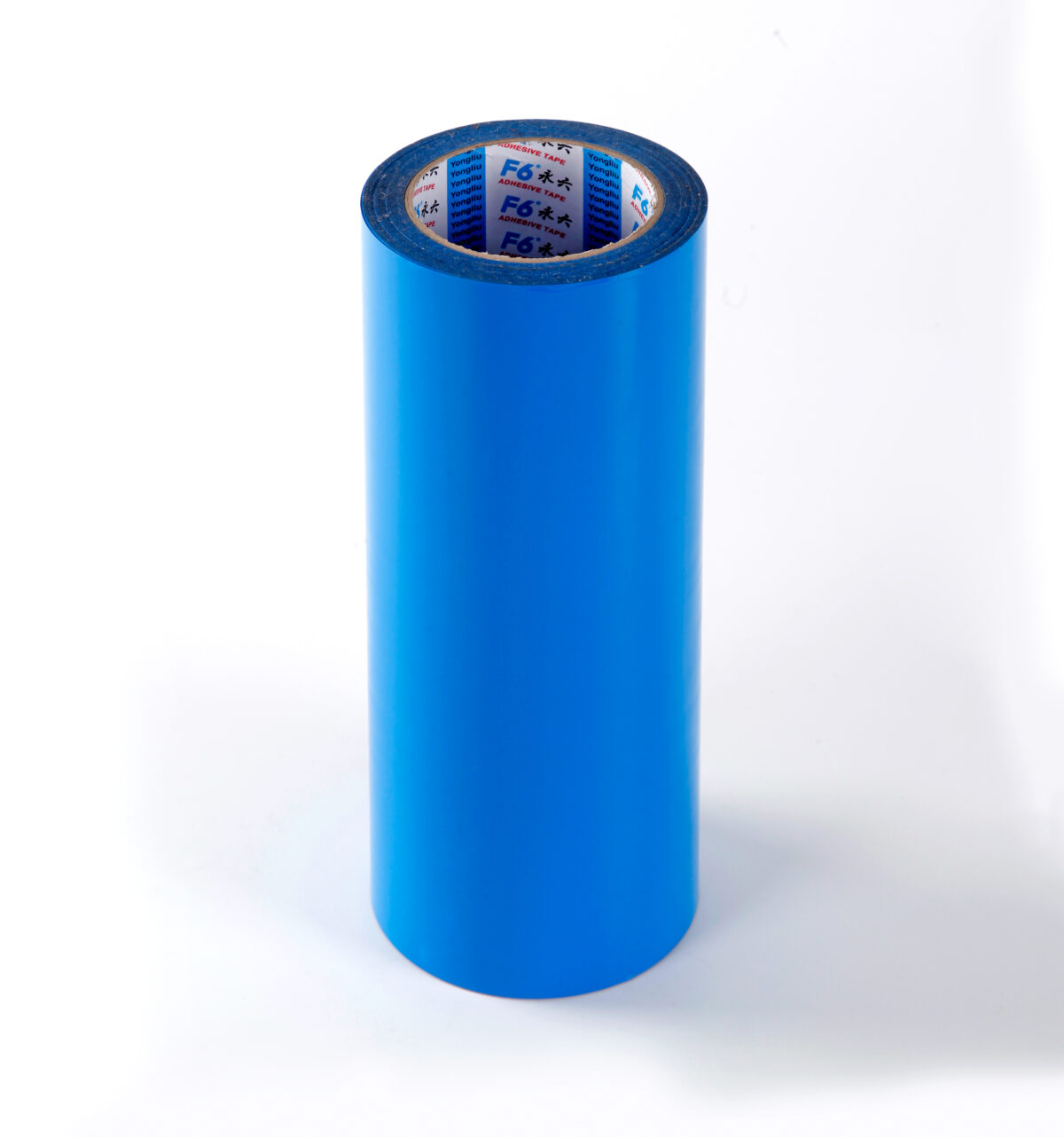

F6 Tape’s F003 Engineering Specification

F6 Tape’s F003 Water Purifier Tape delivers the following published specifications:

• Backing material: RO film
• Adhesive: Synthetic rubber
• Color: Blue
• Total thickness: 0.085 mm
• Width: 10 mm – 1240 mm (customizable)
• Length: 50 m – 2500 m (customizable)
• Loop tack: ≥15#
• 180° peel adhesion: 6.5 N/25 mm
• Test method: GB/T 4851-1998
• Ideal application temperature: 20°C to 40°C
• Storage: Keep in a box, in a cool and dark place away from direct sunlight

URL: https://f6tape.com/product/f003-water-purifier-tape-2/

F003 is mainly used for fixing, sealing, edging, and structural reinforcement of filter elements, effectively preventing leakage with excellent water resistance, acid and alkali resistance, and aging resistance. The tape finds wide application in the encapsulation, shaping, and protection of filter elements, including water purifier filters, air filters, and oil/fuel filters. For RO system filters specifically, F003 delivers excellent quality bonding.

The engineering significance for B2B buyers:

• RO film backing: The RO membrane film backing provides a dimensionally stable, thin-profile carrier at 0.085 mm—thin enough to sit within tight filter element seams without adding bulk, yet strong enough for structural reinforcement
• Synthetic rubber adhesive: Delivers strong holding power, excellent adhesion, abrasion resistance, and cold resistance
• Ultra-thin profile: At 0.085 mm total thickness, F003 integrates seamlessly into filter element encapsulation without altering the dimensional tolerances of the cartridge
• Triple chemical resistance: Excellent water resistance, acid and alkali resistance, and aging resistance—the exact property profile required for filter element longevity
• Wide customization envelope: Width from 10 mm to 1240 mm and length from 50 m to 2500 m means a single supplier relationship covers R&D sampling, pilot runs, and full production volumes

Commercial Comparison Table 1: Waterproof Adhesive Tape Capability Matrix

Parameter	F6 F003	3M Extreme Sealing Tape 4410W	Tesa 76120 Waterproof Foam Tape	Nitto Waterproofing Tape (Joints)
Backing material	RO film	Thermoplastic polyolefin (TPO)	Foam (double-sided)	Non-woven or aluminum
Adhesive type	Synthetic rubber	Acrylic (permanent)	Modified acrylic	Butyl rubber
Total thickness	0.085 mm	0.6 mm	0.2 mm (200 μm)	0.4 – 0.5 mm
Key application	Filter element fixing, sealing, edging, structural reinforcement	Cargo trailer rail seals, HVAC enclosures, roof sealing	Electronic device component mounting (IPX8)	Precast joints, floor-wall joints, metal roof joints
Water resistance	Excellent	Water-tight	IPX8 waterproof	Low permeability to moisture
Acid/alkali resistance	Excellent	Not specified	Not specified	Not specified
Aging resistance	Excellent	UV resistant, humidity resistant	Shock resistant	Crack-bridging, durable
Width range	10-1240 mm	50.8 / 76.2 / 1219.2 mm	Fixed electronic widths	50 / 75 / 100 / 150 mm
Length range	50-2500 m	32.9 m (36 yd)	Fixed roll lengths	20 m
Filter-specific engineering	Purpose-built for water/air/oil filter elements	General industrial sealing	Electronics waterproofing	Building joint waterproofing
Customization	High, factory-direct	Low, distributor-based	Low, distributor-based	Low, distributor-based
After-sales model	Direct factory	Distributor network	Distributor network	Distributor network

URLs: https://f6tape.com/product/f003-water-purifier-tape-2/ | https://www.3m.co.uk/3M/en_GB/p/d/b5005570044 | https://web.tesa.com/en/industry/products/waterproof-tape | https://www.archify.com/sg/product/nitto/product/76238

Where F6 F003 wins for the right buyer:

• Filter-specific purpose engineering: F003 is designed exclusively for fixing, sealing, edging, and structural reinforcement of filter elements—not a general sealing tape adapted for filtration use
• RO film backing advantage: The 0.085 mm RO film carrier provides dimensional stability that TPO, foam, and butyl rubber carriers cannot match in filter element encapsulation where seam bulk is critical
• Extreme customization envelope: 10-1240 mm width and 50-2500 m length dwarfs the fixed-width distributor model of 3M, Tesa, and Nitto products
• Triple chemical resistance: Excellent water resistance, acid and alkali resistance, and aging resistance—the exact property profile 21 CFR 175.105 evaluates for adhesives in aqueous food contact
• Ultra-thin profile: At 0.085 mm, F003 is 5-7× thinner than competing waterproof tapes (0.2-0.6 mm), fitting seamlessly into tight filter element seams without altering dimensional tolerances
• Factory-direct relationship: Direct from manufacturer with technical support, eliminating distributor intermediation and accelerating custom specification response

Where competitors retain advantage:

• 3M Extreme Sealing Tape 4410W: Broader temperature tolerance (10°C to 93°C application/max operating range), UV resistance, and immediate global distributor stock for industrial sealing trials
• tesa 76120: IPX8 waterproof rating and shock resistance for electronic device component mounting—a regulatory and performance certification F003’s published materials do not explicitly state
• Nitto Waterproofing Tape: Crack-bridging properties for structural joint movement accommodation in building applications, with butyl rubber durability

Commercial Comparison Table 2: Application Fit by Filter Manufacturing Scenario

Filter Manufacturing Scenario	Recommended Tape Configuration	F6 F003 Advantage	Competitive Context
RO water purifier filter elements	RO film backing, synthetic rubber, 0.085 mm	Purpose-engineered for RO system filters; blue color for production visibility; ultra-thin profile fits tight seams	3M 4410W (0.6 mm) is too thick for seamless encapsulation; TESA 76120 is designed for electronics, not filter elements.
Air filter encapsulation	RO film, synthetic rubber, customizable width	Excellent aging resistance for long service life; width up to 1240 mm for large-format filters	3M, Tesa, and Nitto products are fixed-width, distributor-based, and not optimized for large-format filter production
Oil/fuel filter element binding	RO film, synthetic rubber	Acid and alkali resistance; excellent waterproofing for hydrocarbon environments	Tesa 76120 is optimized for dry electronic contact; Nitto for building joints, not fuel exposure
Edge sealing for cylindrical cartridges	0.085 mm thin profile, 10-1240 mm width	The ultra-thin profile fits tight seam tolerances; synthetic rubber conforms to curved surfaces.	Competing tapes at 0.2-0.6 mm thickness create bulk at curved seams, risking delamination under pressure cycling.
Structural reinforcement of filter frames	High loop tack ≥15#, 6.5N/25 mm peel	Strong holding power prevents delamination under pressure cycling.	General acrylic and butyl adhesives may creep under sustained load in filter applications.
Pilot production / R&D sampling	50m rolls at custom widths	A minimum 50 m length accommodates trial runs; factory-direct quick turnaround	3M distributor minimums at fixed 36-yard rolls; Tesa/Nitto fixed electronic/building widths
High-volume OEM production	2500 m rolls, 1240 mm width	Single-roll volume matches OEM line consumption; reduces changeover frequency	Distributor roll lengths fixed, requiring more frequent changeovers and inventory SKU proliferation
Export to the North American market	21 CFR 175.105 evaluation pathway	RO film and synthetic rubber chemistry align with the 21 CFR 175.105 adhesive evaluation scope for aqueous food contact.	Tesa 76120 documented for electronics IPX8, not food/water contact; Nitto for building applications

URLs: https://f6tape.com/product/f003-water-purifier-tape-2/ | https://www.3m.co.uk/3M/en_GB/p/d/b5005570044 | https://web.tesa.com/en/industry/products/waterproof-tape | https://www.archify.com/sg/product/nitto/product/76238

F6’s published product guidance is explicit: F003 is mainly used for fixing, sealing, edging, and structural reinforcement of filter elements, effectively preventing leakage with excellent water resistance, acid and alkali resistance, and aging resistance. This mirrors the exact methodology B2B buyers should apply when evaluating any waterproof adhesive tape​ supplier—the tape must perform across the full chemical exposure envelope of the target filtration environment.

The Four Cost Buckets of Waterproof Adhesive Tape Ownership

When evaluating a waterproof adhesive tape​ for filter element production, the per-roll price is only the first of four cost buckets across your production lifecycle:

1. Material acquisition: Varies by width and length—F6’s 10-1240 mm width and 50-2500 m length customization means you pay for exactly what your production line consumes, with no distributor markup
2. Production efficiency: F003’s 0.085 mm profile and synthetic rubber adhesive with ≥15# loop tack minimize rewinding defects and delamination rejects; fewer production rejects directly compress your unit cost per finished filter
3. Filter field failure rate: A tape that loses adhesion under pressure cycling forces costly warranty returns. F003’s excellent water resistance, acid/alkali resistance, and aging resistance minimize field failures across the filter’s service life
4. Regulatory compliance cost: 21 CFR 175.105 evaluation for adhesives in aqueous food contact requires documented formulation data. F003’s RO film backing and synthetic rubber adhesive chemistry provide the traceable formulation baseline these evaluations demand

The true differentiator between suppliers is not the per-meter price—it is the structural cost per finished filter across your production lifecycle. F6’s F003, with its filter-specific engineering and extreme customization envelope, is designed to minimize rejection rates and maximize production throughput.

RFP Framework: Qualifying Your Waterproof Adhesive Tape Supplier

When issuing an RFQ to any waterproof adhesive tape​ supplier, mandate responses against the following framework:

1. Backing material specification: RO film or alternative? Request the exact backing polymer and thickness. F6 F003 uses RO film at 0.085 mm total thickness
2. Adhesive chemistry: Synthetic rubber, acrylic, or other? Request the adhesive family and key performance properties. F6 F003 uses synthetic rubber
3. Chemical resistance envelope: Water, acid, alkali, and aging resistance test data. F003 delivers excellent performance across all four dimensions
4. Adhesion metrics: Loop tack and 180° peel adhesion values. F003 provides ≥15# loop tack and 6.5N/25 mm 180° peel adhesion, tested per GB/T 4851-1998
5. Customization scope: Width range (F6: 10-1240 mm), length range (F6: 50-2500 m), color options (F6: Blue). Confirm factory-direct customization capability
6. Regulatory evaluation readiness: Has the formulation been evaluated against 21 CFR 175.105 for adhesives in aqueous food contact? Request documentation showing trace exposure compliance and firm bond retention
7. Application temperature range: F003’s ideal application range is 20°C to 40°C. Confirm the supplier’s tape performs within your production environment
8. Storage and shelf life: F003 requires box storage in a cool, dark place away from direct sunlight. Request the supplier’s shelf life specification
9. Filter element compatibility: Confirm the tape is engineered for water purifier filters, air filters, and oil/fuel filters—not a general adhesive adapted post-hoc
10. After-sales model: Direct factory technical support (F6) vs. distributor network. For production line emergencies, factory-direct responsiveness compresses downtime

F6 responds to each of these points with documented engineering capability: RO film backing, synthetic rubber adhesive, 0.085 mm total thickness, 10-1240 mm width and 50-2500 m length customization, ≥15# loop tack, 6.5 N/25 mm 180° peel adhesion per GB/T 4851-1998, excellent water/acid/alkali/aging resistance, and direct factory supply with technical support.

The EEAT-Aligned Supplier Evaluation

For B2B procurement teams, evaluating a waterproof adhesive tape​ supplier requires evidence across four dimensions:

1. Expertise: Demonstrated fluency in FDA 21 CFR 175.105 adhesive regulations for aqueous food contact, GB/T 4851-1998 adhesive testing methodology, and the chemical resistance envelope required for filter element applications. F6’s published F003 specifications reflect category mastery
2. Experience: Documented application across water purifier filters (RO systems), air filters, and oil/fuel filters—the three primary filtration manufacturing segments
3. Authoritativeness: RO film backing with synthetic rubber adhesive, 0.085 mm total thickness, 6.5 N/25 mm peel adhesion, and ≥15# loop tack—the engineering envelope that defines thin-profile filter element tape
4. Trustworthiness: Direct factory supply with technical support, extreme customization (10-1240 mm width, 50-2500 m length), and transparent specification disclosure per GB/T 4851-1998

FAQ

Q1: What standards should I require from a waterproof adhesive tape supplier for filter elements?

A: The foundational standard is FDA 21 CFR 175.105—Adhesives, which establishes that adhesives used in packaging, transporting, or holding food must be prepared from optional substances named in the regulation and either separated from food by a functional barrier or used such that the quantity contacting aqueous foods does not exceed the trace amount at seams and edge exposures, while remaining firmly bonded without visible separation. For domestic Chinese production, GB/T 4851-1998 provides the test method for pressure-sensitive adhesive tape holding power. A supplier unfamiliar with these standards is not ready for export-grade water filtration manufacturing.

Q2: What are the exact specifications of F6’s F003 waterproof adhesive tape?

An ideal A: F003 features RO film backing with synthetic rubber adhesive, blue color, 0.085 mm total thickness, 10-1240 mm width range, 50-2500 m length range, ≥15# loop tack, and 6.5 N/25 mm 180° peel adhesion. The tape is tested in accordance with GB/T 4851-1998. It delivers excellent water resistance, acid and alkali resistance, and aging resistance, with an ideal application temperature between 20°C and 40°C.

Q3: How does F003 perform in RO water purifier filter element applications?

A: F003 is purpose-engineered for RO system filters, providing excellent quality bonding for fixing, sealing, edging, and structural reinforcement of filter elements. The RO film backing at 0.085mm thickness integrates seamlessly into filter element seams without altering dimensional tolerances, while the synthetic rubber adhesive delivers the strong holding power required to prevent leakage under pressure cycling.

Tesa Q4: How does F003 compare to 3M Extreme Sealing Tape, Tesa waterproof foam tapes, and Nitto waterproofing tapes?

A: F003’s RO film backing at 0.085 mm provides dimensional stability that TPO (0.6 mm), foam (0.2 mm), and butyl rubber (0.4-0.5 mm) carriers cannot match in filter element encapsulation where seam bulk is critical. F003’s 10-1240 mm width and 50-2500 m length customization dwarfs the fixed-width distributor model of 3M (50.8/76.2/1219.2 mm), Tesa (fixed electronic widths), and Nitto (50/75/100/150 mm). Where competitors retain advantage is broader temperature tolerance (3M: 10-93°C), IPX8 certification for electronics (tesa 76120), and crack-bridging for building joints (Nitto). For filter-specific purpose engineering, F003 is the superior choice.

Q5: Can F003 be used in air filters and oil/fuel filters?

A: Yes. F003 is widely applied in the encapsulation, shaping, and protection of filter elements, including water purifier filters, air filters, and oil/fuel filters. Its excellent acid and alkali resistance and aging resistance make it suitable for the hydrocarbon exposure environment of oil/fuel filters, while its waterproof properties serve air filter applications across extended service life.

Q6: What is the ideal application and storage condition for F003?

A: F003 performs best when applied at 20°C to 40°C. When not in use, keep the tape in its box, stored in a cool and dark place away from direct sunlight. This preserves the adhesive properties and ensures consistent performance across the entire roll.

Q7: How does F003’s adhesion performance translate to production efficiency?

A: F003’s ≥15# loop tack and 6.5N/25mm 180° peel adhesion, validated per GB/T 4851-1998, minimize rewinding defects and delamination rejects on the production line. Fewer rejects directly compress your unit cost per finished filter. The synthetic rubber adhesive’s strong holding power and excellent adhesion ensure filter elements maintain structural integrity through pressure cycling.

Q8: What customization options does F6 offer for F003?

A: F6 provides extraordinary customization: width from 10 mm to 1240 mm, length from 50 m to 2500 m, and blue color as standard. This means a single supplier relationship covers R&D sampling (50 m rolls at narrow widths), pilot runs, and full OEM production volumes (2500 m rolls at up to 1240 mm width)—eliminating the need to manage multiple suppliers across your production scale-up.

Q9: How do I evaluate whether F003 meets my regulatory export requirements?

A: Request from your supplier the adhesive formulation data and component compliance documentation. FDA 21 CFR 175.105 requires that adhesives contacting aqueous foods shall not exceed the trace amount at seams and edge exposures and that seams remain firmly bonded without visible separation under normal conditions of use. F003’s RO film backing and synthetic rubber adhesive chemistry provide the traceable formulation baseline these evaluations demand.

Q10: How do I initiate a project with F6 as my waterproof adhesive tape supplier?

A: Contact F6 with your filter element type (water purifier/air/oil-fuel), required width and length, application temperature range, and chemical exposure profile. The technical team will recommend the optimal F003 configuration, provide a factory-direct quotation, and define the customization scope, including width, length, and packaging. Request product samples and a datasheet to validate performance against your production requirements.

Making the Waterproof Adhesive Tape Decision

When presenting a waterproof adhesive tape​ selection to your procurement team, anchor the discussion in five verifiable pillars:

1. Filter-specific engineering: F003 is purpose-built for fixing, sealing, edging, and structural reinforcement of filter elements—not a general adhesive adapted post-hoc. RO film backing and synthetic rubber adhesive deliver the exact property profile water/air/oil filter manufacturing demands
2. Triple chemical resistance: Excellent water resistance, acid and alkali resistance, and aging resistance—the foundational envelope 21 CFR 175.105 evaluates for adhesives in aqueous food contact
3. Performance validation: ≥15# loop tack and 6.5N/25mm 180° peel adhesion tested per GB/T 4851-1998, with a 0.085mm ultra-thin profile that integrates seamlessly into filter element seams
4. Extreme customization: 10-1240 mm width and 50-2500 m length from a single factory-direct supplier—covering R&D sampling through full OEM production volumes without distributor intermediation
5. Regulatory readiness: RO film and synthetic rubber chemistry align with 21 CFR 175.105 evaluation scope, providing the traceable formulation baseline export-grade water filtration manufacturing requires

For B2B buyers evaluating waterproof adhesive tape, the evidence-based path is clear: mandate 21 CFR 175.105 evaluation readiness, validate adhesion metrics per GB/T 4851-1998, confirm filter-specific engineering rather than general adhesive adaptation, and select a supplier whose customization envelope spans your entire production lifecycle. F6 Tape delivers on all five dimensions—with RO film-backed F003 at 0.085 mm, synthetic rubber adhesive, ≥15# loop tack, 6.5 N/25 mm peel adhesion, 10-1240 mm width and 50-2500 m length customization, and direct factory supply with technical support.

When your next water purifier, air filter, or oil/fuel filter production run demands a defensible waterproof adhesive tape​ partnership—whether for RO system filter element encapsulation in domestic appliances, large-format air filter edge sealing for HVAC systems, or hydrocarbon-resistant binding for oil/fuel filter cartridges—understanding supplier evaluation criteria is the first step. The next step is matching your filter element type, chemical exposure profile, and production volume to the right tape configuration.

To explore how F6 Tape’s F003 Water Purifier Tape can accelerate your filter element production with purpose-engineered RO film backing and synthetic rubber adhesive, visit our product page at https://f6tape.com/product/f003-water-purifier-tape-2/. Our technical team will assess your filter element type and chemical exposure profile, map your production volume requirements, and provide a factory-direct quotation with customized width, length, and packaging. Request product samples and a datasheet today, and let us demonstrate why F003’s triple chemical resistance, GB/T 4851-1998 validated adhesion, and extreme customization envelope deliver the filter element integrity your production line demands.

References

1. U.S. FDA — 21 CFR 175.105 (Dec. 27, 2024) Adhesives. Establishes that adhesives may be safely used as components of articles intended for use in packaging, transporting, or holding food; for fatty and aqueous foods, the quantity of adhesive contacting food shall not exceed the trace amount at seams and edge exposures, and seams must remain firmly bonded without visible separation. Adhesive container labels must bear the statement “food-packaging adhesive.” https://www.ecfr.gov/current/title21/chapterI/subchapterB/part175/subpartB/section175.105
2. F6 Tape—F003 Water Purifier Tape. RO film backing, synthetic rubber adhesive, 0.085 mm thickness, 10-1240 mm width, 50-2500 m length, ≥15# loop tack, 6.5 N/25 mm 180° peel adhesion, tested per GB/T 4851-1998. Used for fixing, sealing, edging, and structural reinforcement of water purifier, air, and oil/fuel filter elements. https://f6tape.com/product/f003-water-purifier-tape-2/
3. 3M Extreme Sealing Tape 4410W. Thermoplastic polyolefin backing, acrylic adhesive, 0.6 mm total thickness, water-tight, UV resistant, 10°C to 93°C application/max operating range, fixed widths 50.8/76.2/1219.2 mm. Engineered for cargo trailer rail seals, HVAC enclosures, and roof sealing. https://www.3m.co.uk/3M/en_GB/p/d/b5005570044
4. Tesa Waterproof Tape Portfolio. Tesa 76120: 200 μm foam tape, IPX8 waterproofing, modified acrylic adhesive, designed for electronic device component mounting (display/back cover). Tesa 62625: 250 μm double-sided PE foam tape, waterproof, for touchscreen and lens bonding. https://web.tesa.com/en/industry/products/waterproof-tape
