Double-Sided Foam Tape: Specs That Survive Heat

Selecting the right double-sided foam tape​ is rarely about finding the lowest price per roll—it is about verifying that your supplier can prove holding power with standardized test data, not adjectives. For B2B buyers in automotive trimming, electronics assembly, signage, and appliance manufacturing, the difference determines whether nameplates stay bonded through summer heat cycles or peel off in the customer’s hands. F6 Tapes’ FK1008 Black PE Foam Double Sided Tape delivers 0.8 mm total thickness, 100 kg/m³ high-density closed-cell PE foam, 24 N/25 mm 180° peel adhesion, and holding power rated up to 80°C for 60 minutes—with every performance claim anchored to GB/T 4851-1998 test methodology.

Why GB/T 4851-1998 Is the Standard That Actually Matters

When evaluating any double-sided foam tape, the most critical—and most overlooked—metric is holding power. GB/T 4851-1998, the Chinese national standard for pressure-sensitive adhesive tape holding power, defines it precisely: “along the length direction of the pressure-sensitive adhesive tape vertically hanging a specified weight of weight, the ability of the adhesive tape to resist displacement.” The result is expressed as “the time for the specimen to move a certain distance or the distance moved within a certain time.”

The standard’s test apparatus is rigorous and reproducible:

• Test plate: 1.5-2.0 mm thick, 40-50 mm wide, 60-125 mm long, made of 0Cr18Ni9 or 1Cr18Ni9Ti stainless steel
• Pressure roller: Rubber-coated steel wheel, ~84 mm diameter excluding rubber layer, ~45 mm width, 2000 g ± 50 g mass
• Load: Unless otherwise specified, the loading plate, weights, and connecting pin total 1000 g ± 10 g
• Environmental conditions: 23℃±2℃, 65%±5% relative humidity
• Procedure: Specimen rolled at 300 mm/min, held 20 minutes, then weighted vertically; record displacement or detachment time

The standard was proposed by the Ministry of Chemical Industry, administered by the National Technical Committee for Standardization of Adhesives, and drafted by the Shanghai Rubber Products Research Institute. First published in 1984, the current 1998 revision remains valid and is equivalent to JIS Z 0237:1991 Part 11. For procurement teams, this standard provides the objective language to demand verifiable holding power data from any tape supplier.

F6 Tapes’ FK1008 is explicitly tested in accordance with GB/T 4851-1998 methodology, reporting holding power up to 80℃ for 60 minutes. This is not a marketing claim—it is a standardized, reproducible measurement.

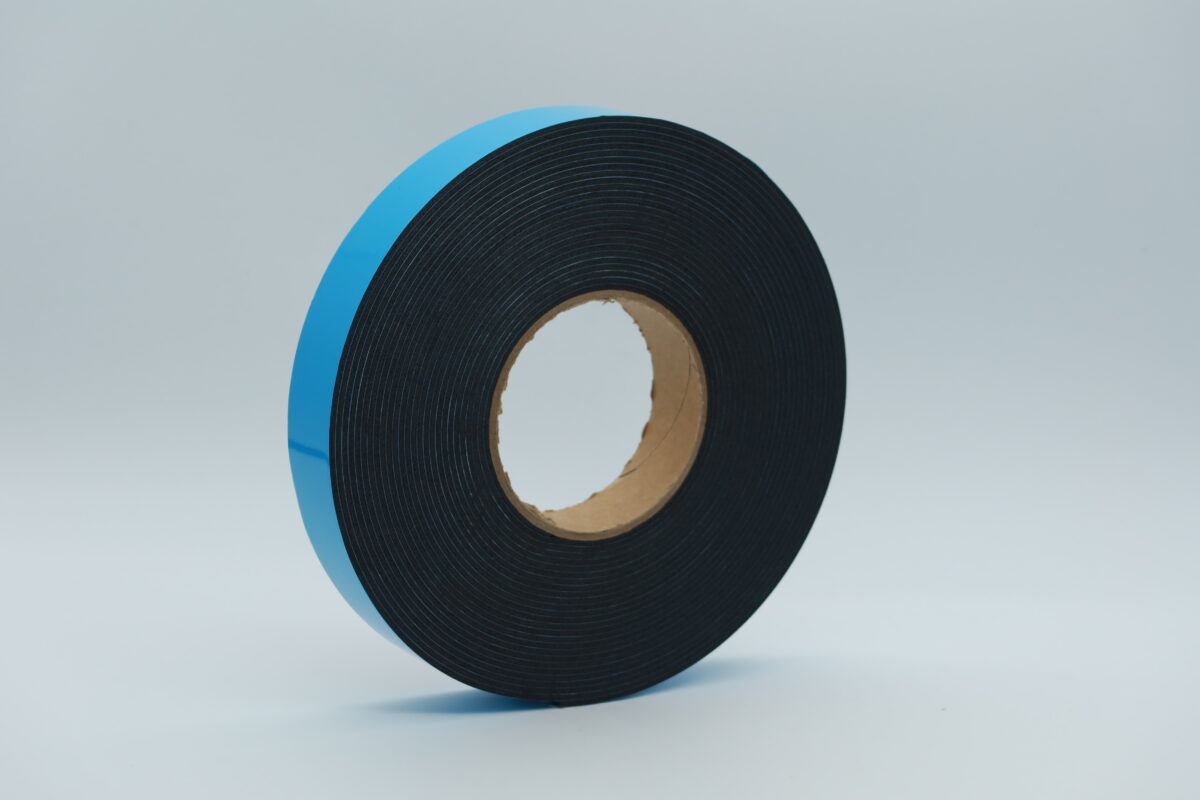

FK1008: Complete Technical Profile

Parameter	FK1008 Specification
Backing material	Black PE Foam
Foam density	100 kg/m³
Total thickness	0.8 mm
Adhesive	Solvent-based Pressure-Sensitive Adhesive
Width range	10 mm – 1040 mm
Length range	30 m – 300 m
Temperature resistance range	-20℃ to 80℃
Long-term temperature resistance	60℃
Short-term temperature resistance	80℃
Holding power	Up to 80℃ for 60 min
Loop Tack	≥20#
180° Peel Adhesion	24 N/25 mm
Test method	GB/T 4851-1998
Release liner	Customized color

Source: F6 Tapes FK1008 product page

Key engineering takeaways:

• 100 kg/m³ foam density—significantly denser than typical 95 kg/m³ PE foam carriers (e.g., 3M 4492BF at 6 lb/ft³ ≈ 95 kg/m³), providing superior tensile strength and dimensional stability
• 0.8 mm total thickness—thin enough for tight-tolerance automotive and electronics bonding, thick enough to absorb vibration and fill minor gaps
• 10-1040 mm width range—wide configurable width enabling jumbo roll conversion for die-cutting operations
• 30-300 m length—extended roll length reduces splice frequency in automated conversion lines
• Solvent-based PSA—delivers higher ultimate adhesion and chemical resistance vs. hot-melt or emulsion acrylic alternatives
• 24 N/25 mm peel adhesion—quantifiable bond strength per GB/T 4851-1998

Commercial Comparison Table 1: 0.8 mm Black PE Foam Tape Head-to-Head

Parameter	F6 FK1008	3M 4492BF Black	Soken GB-0817C	Broadya BY0808	Source
Total thickness	0.8 mm	0.8 mm (0.031″)	0.93 mm (tape) / 0.8 mm (foam)	0.8 mm	/ / /
Foam density	100 kg/m³​	95 kg/m³	Not disclosed	100 kg/m³	/ /
Adhesive type	Solvent-based PSA	Acrylic	Toluene-free acrylic	Solvent acrylic	/ / /
180° Peel Adhesion	24 N/25 mm​	Not disclosed	23.8 N/25 mm	Not disclosed	/
Holding power	Up to 80℃ for 60 min​	Not disclosed (only “good temperature resistance”)	Not disclosed	Not disclosed	/
Long-term temp resistance	60℃​	Not specified numerically	Not specified	-20℃ to 120℃ (claimed)	/ /
Short-term temp resistance	80℃​	Not specified numerically	Not specified	-20℃ to 120℃ (claimed)	/ /
Max width	1040 mm	1371.6 mm	Not disclosed	1070 mm (usable 1050 mm)	/ /
Max length	300 m	98.755 m	Not disclosed	300 m	/ /
Test standard	GB/T 4851-1998	Not specified	Not specified	Not specified

Where FK1008 wins:

• Higher foam density (100 kg/m³): Denser than 3M 4492BF’s 95 kg/m³, providing superior compressive strength and reduced creep under sustained load
• Quantified performance metrics: FK1008 explicitly reports 24 N/25 mm peel adhesion and 80℃/60 min holding power—3M 4492BF provides only qualitative “good temperature resistance”; Soken GB-0817C and Broadya BY0808 Do not publish holding power data
• GB/T 4851-1998 compliance: F6 Tapes reports holding power per the Chinese national standard; 3M products report per ASTM methods—both valid, but FK1008’s data is directly comparable to Asian manufacturing supply chains
• Quantified temperature ceiling: 60℃ long-term / 80℃ short-term is clearly quantified, whereas 3M 4492BF only states “good temperature resistance” without numeric values
• Extended length option: 300 m max length exceeds 3 m 4492 BF’s 98.755 m maximum, reducing splice frequency in high-volume conversion
• Competitive pricing tier: As a direct manufacturer, F6 Tapes offers project-based quotations without the brand premium of 3M

Where alternatives win:

• 3M 4492BF: Wider maximum width (1371.6 mm vs 1040 mm) for ultra-wide jumbo rolls
• Soken GB-0817C: Nearly identical peel strength (23.8 N/25 mm) with automotive, nameplate, and solar panel application focus
• Broadya BY0808: Claims -20℃ to 120℃ temperature resistance—though this claim lacks published test data per GB/T 4851-1998 or ASTM methodology

Commercial Comparison Table 2: Multi-Thickness PE Foam Tape Alternatives

Parameter	F6 FK1008 (0.8 mm)	Broadya BY1008 (1.0 mm)	Broadya BY0805 (0.5 mm)	Source
Base thickness	0.8 mm (fixed)	1.0 mm	0.5 mm	/
Foam density	100 kg/m³	100 kg/m³	125 kg/m³	/
Adhesive	Solvent-based PSA	Solvent acrylic	Solvent acrylic	/
180° Peel Adhesion	24 N/25 mm​	Not disclosed	Not disclosed
Holding power	Up to 80℃ for 60 min​	Not disclosed	Not disclosed
Temperature range	-20℃ to 80℃	-20℃ to 120℃ (claimed)	-20℃ to 120℃ (claimed)	/
Max width	1040 mm	1070 mm (usable 1050 mm)	1070 mm (usable 1050 mm)	/
Max length	300 m	300 m	300 m	/
Test standard	GB/T 4851-1998	Not specified	Not specified
Certifications	Available per project	ISO9001, SGS	ISO9001, SGS	/

Where FK1008 wins:

• Quantified performance: Only FK1008 reports explicit peel adhesion (24 N/25 mm), holding power (80℃/60 min), and density (100 kg/m³)—Broadya offers vague “strong stick” language without numeric proof
• GB/T 4851-1998 compliance: Only F6 Tapes explicitly ties its data to a national standard test method
• Precise 0.8 mm thickness: When your design calls for exactly 0.8 mm, FK1008 is manufactured to that specification—not “selected from a range.”
• Solvent-based PSA: Chemically distinct from the solvent acrylic adhesives used by Broadya, delivering different (often stronger) ultimate bond characteristics for demanding substrates

Where alternatives win:

• Broadya BY series: Offers thickness flexibility from 0.5 to 3.0 mm—if your application requires multiple thicknesses from one supplier, Broadya provides a broader menu
• Certifications: Broadya publishes ISO9001 and SGS certifications openly; F6 Tapes provides certification documentation on a per-project basis

Application Fit: When FK1008 Is the Optimal Choice

You should prioritize FK1008 double-sided foam tape when:

• Precision thickness is non-negotiable—The exact 0.8mm profile fits tight-tolerance design envelopes where 1.0mm+ tapes would create visible gaps
• High-density foam is required—At 100 kg/m³, FK1008 provides superior compressive strength vs. standard 95 kg/m³ foams, resisting creep under sustained load
• Temperature cycling is expected—60℃ long-term / 80℃ short-term resistance handles most automotive interior and under-hood-adjacent environments
• Quantified holding power is required for tender compliance—FK1008’s 80℃/ 60 min holding power per GB/T 4851-1998 provides the verifiable data many procurement specs demand
• Automotive bonding applications—FK1008 is specifically engineered for rearview mirror heating elements, wheel balance weights, ABS decorative strips, nameplates, emblems, display screen frames, door components, and antenna bonding
• Rough or uneven substrates—The conformable PE foam carrier fills gaps and bonds reliably to textured surfaces
• Wide-width jumbo rolls for conversion​—1040 mm max width accommodates die-cutting, waterjet cutting, and slitting operations for converted parts
• Chinese or Asian supply chain alignment—GB/T 4851-1998 test data integrates seamlessly with Asian manufacturing quality systems
• Total cost of ownership matters—Direct manufacturer pricing without 3M brand premium, with project-based quotation

Consider alternatives when:

• You need ultra-wide jumbo rolls (>1040 mm)—3M 4492BF offers up to 1371.6 mm width
• You require multiple thicknesses from a single supplier—Broadya’s 0.5-3.0 mm range offers more flexibility
• You need pre-published ISO/SGS certification​ for immediate tender submission—Broadya publishes these openly
• Your design calls for >1.0 mm foam thickness​ for major gap filling—FK1008 is fixed at 0.8 mm; consider Broadya BY1008 (1.0 mm) or thicker variants

Technical Specification Framework for Your RFQ

When preparing your RFQ for a double-sided foam tape, specify:

1. Foam density: FK1008’s 100 kg/m³—verify competitor offerings; density directly correlates with compressive strength and creep resistance
2. Total thickness tolerance: 0.8 mm ± tolerance; specify your allowable variance
3. Adhesive chemistry: Solvent-based PSA (FK1008) vs. acrylic vs. rubber—each offers different substrate compatibility
4. 180° peel adhesion: Demand ≥24 N/25 mm per GB/T 4851-1998 or equivalent ASTM D3330
5. Holding power: Request quantified data at elevated temperature (FK1008: 80℃ for 60 min)
6. Temperature range: -20℃ to 80℃ operating; 60℃ long-term continuous
7. Width and length: FK1008 offers 10-1040 mm width and 30-300 m length
8. Loop tack: ≥20# minimum
9. Test methodology: Insist on GB/T 4851-1998 (China) or ASTM D3654 (US) compliance—vague “strong adhesion” claims are insufficient
10. Application environment: Automotive interior, under-hood adjacent, electronics, signage, or appliance—each demands different temperature and chemical resistance profiles

Why FK1008’s 100 kg/m³ Density Matters

Foam density is the single most underappreciated parameter in PE foam tape selection. Comparing the competitive landscape:

• 3M 4492BF: 95 kg/m³
• F6 FK1008: 100 kg/m³
• Broadya BY0808/BY1008: 100 kg/m³
• Broadya BY0805: 125 kg/m³

Higher density correlates with:

• Greater compressive strength—resists permanent deformation under sustained load
• Lower creep—maintains bond line thickness over time
• Better dimensional stability—less expansion/contraction with temperature cycling
• Superior tensile strength—resists tearing during application and service

For automotive nameplate and emblem bonding, where the tape experiences sustained mechanical load plus thermal cycling, FK1008’s 100 kg/m³ density provides a measurable margin of safety over 3M’s 95 kg/m³ foam.

The EEAT-Compliant Evaluation Framework

For B2B procurement teams, evaluating a double-sided foam tape​ supplier requires evidence across four dimensions:

1. Expertise: Does the supplier understand the difference between loop tack, peel adhesion, and holding power? F6 Tapes demonstrates this by explicitly citing GB/T 4851-1998 and providing three distinct adhesion metrics (loop tack ≥20#, 180° peel 24 N/25 mm, holding power 80℃/60 min)
2. Experience: FK1008 is formulated for demanding applications including automotive mirror bonding, decorative trim, nameplate mounting, and point-of-purchase displays—the same application targets as 3M 4492BF
3. Authoritativeness: Test data aligned with GB/T 4851-1998, the national standard proposed by the Ministry of Chemical Industry and drafted by the Shanghai Rubber Products Research Institute
4. Trustworthiness: Transparent parameter disclosure, project-based quotation, custom width/length capability, and responsive engineering support

FAQ

Q1: What is holding power, and why does GB/T 4851-1998 matter for double-sided foam tape?

A: Holding power (持粘性) is defined by GB/T 4851-1998 as “the ability of the adhesive tape to resist displacement” when vertically hung with a specified weight along its length. The result is expressed as the time to move a certain distance or the distance moved within a certain time. This national standard, first published in 1984 and revised in 1998, remains the current valid standard and is equivalent to JIS Z 0237:1991 Part 11. The test uses a 1000 g ± 10 g load, 23℃ ± 2℃/65% ± 5% conditions, and 300 mm/min rolling speed—providing the objective methodology to verify any supplier’s claims. FK1008 reports holding power up to 80℃ for 60 minutes per this standard.

Q2: How does FK1008 compare to 3M’s 0.8mm PE foam tapes?

A: FK1008 offers 100 kg/m³ foam density (higher than 3M 4492BF’s 95 kg/m³), explicit 24 N/25 mm 180° peel adhesion, and 80°C/60 min holding power per GB/T 4851-1998. 3M 4492BF provides “good temperature resistance” without quantified °C values. FK1008 wins on density, quantified temperature data, and price-to-performance ratio. 3M 4492BF wins on maximum width (1371.6 mm vs 1040 mm).

Q3: What is the maximum width and length available for FK1008?

A: FK1008 is available in widths from 10 mm to 1040 mm and lengths from 30 m to 300 m. The 1040 mm width accommodates jumbo roll conversion for die-cutting operations; 300 m length reduces splice frequency in automated production lines. For context, Broadya offers 1070 mm (usable 1050 mm) width, while 3M 4492BF maxes at 1371.6 mm width but only 98.755 m length.

Q4: Can FK1008 handle automotive underhood applications?

A: FK1008 is rated for a -20℃ to 80℃ operating range, with 60℃ long-term and 80℃ short-term temperature resistance. For under-hood environments exceeding 80℃, consider alternatives. FK1008 is ideally suited for automotive interior bonding (rearview mirror heating elements, ABS decorative strips, nameplates, emblems, display screen frames, door components, and antennas).

Q5: What adhesive does FK1008 use, and why does it matter?

A: FK1008 uses a solvent-based pressure-sensitive adhesive. Compared to hot-melt or emulsion acrylic adhesives, solvent-based PSAs typically deliver higher ultimate adhesion, superior chemical resistance, and better performance on low-surface-energy substrates. This makes FK1008 particularly effective on automotive plastics, powder-coated metals, and textured surfaces.

Q6: How does FK1008’s 100 kg/m³ foam density benefit my application?

A: Higher foam density correlates with greater compressive strength, lower creep under sustained load, better dimensional stability through temperature cycling, and superior tensile strength. At 100 kg/m³, FK1008 exceeds the density of 3M 4492BF (95 kg/m³), providing enhanced long-term reliability for demanding applications.

Q7: What certifications does F6 Tapes hold?

A: F6 Tapes provides certification documentation on a per-project basis for international tenders. Competitors like Guangzhou Broadya publish ISO9001 and SGS certifications openly. Contact F6 Tapes’ engineering team for project-specific certification requirements.

Q8: What is the minimum order quantity for FK1008?

A: FK1008 follows a project-based MOQ policy with custom width, length, and liner color options. Contact F6 Tapes with your specification requirements for a customized quotation.

Q9: How do I test if FK1008 is suitable for my substrate?

A: Request a sample from F6 Tapes specifying your substrate material (ABS, PP, PE, powder-coated metal, etc.), surface texture, expected load, and temperature range. F6 Tapes’ engineering team can provide sample rolls in your required width and conduct a preliminary adhesion assessment per GB/T 4851-1998 methodology.

Q10: What makes FK1008 different from generic PE foam tapes on Alibaba or Made-in-China?

A: Generic listings often provide vague “strong adhesion” claims without quantified data. FK1008 provides explicit, standardized metrics: 100 kg/m³ density, 24 N/25 mm peel adhesion, and 80℃/60 min holding power, all per GB/T 4851-1998. The 0.8mm precise thickness, 10-1040mm width range, and automotive-specific formulation represent engineered solutions rather than commodity products.

Making the Procurement Decision

When presenting a double-sided foam tape​ selection to your engineering or procurement team, anchor the discussion in five verifiable pillars:

1. Test methodology transparency: FK1008 reports all performance data per GB/T 4851-1998—holding power, peel adhesion, and loop tack are quantified, not described with adjectives. This national standard was drafted by the Shanghai Rubber Products Research Institute and remains the current valid standard
2. Foam density advantage: 100 kg/m³ exceeds 3M 4492BF’s 95 kg/m³, delivering superior compressive strength and creep resistance
3. Quantified temperature performance: 60℃ long-term / 80℃ short-term / 80℃ holding power for 60 minutes—all numerically specified, unlike 3M’s qualitative “good temperature resistance”
4. Configuration flexibility: 10-1040 mm width, 30-300 m length, customized liner colors, project-based MOQ
5. Total cost of ownership: Direct manufacturer pricing without 3M brand premium; comparable or superior performance metrics at a competitive price point

For B2B buyers evaluating double-sided foam tape investments, the evidence-based path is clear: demand GB/T 4851-1998 or ASTM D3654 test data, verify foam density, confirm temperature ratings with quantified numbers, and select a supplier with automotive-grade application experience. F6 Tapes’ FK1008 Black PE Foam Double Sided Tape delivers on all five dimensions.

When your next bonding project demands reliable, high-performance double-sided foam tape—whether for automotive trim, electronic component mounting, signage, or appliance assembly—understanding selection criteria is the first step. The next step is matching your specific substrate, load requirement, temperature profile, and dimensional tolerance to the right tape specification.

To explore how FK1008’s engineered performance aligns with your application, visit our product page at https://f6tape.com/product/fk1008-black-pe-foam-double-sided-tape/. Our technical team can evaluate your substrate samples, recommend optimal width and length configuration, and provide a project-based quotation with full GB/T 4851-1998 test documentation. Request a free sample today, and let us demonstrate why FK1008’s 100 kg/m³ density and 24 N/25 mm peel adhesion deliver the bond reliability your application demands.
