Foam Adhesive Tape: Engineer’s Procurement Brief

Selecting the right foam adhesive tape​ is rarely about advertisement claims—it is about verifying three things: whether the foam carrier can compress to fill gaps and absorb vibration, whether the adhesive develops sufficient holding power on your actual substrate, and whether the product is tested against a recognized standard. Our FK0805 Black PE Foam Double Sided Tape is engineered specifically around these three verification points, delivering excellent bonding strength, cushioning and shock-absorbing performance, reliable sealing and waterproof properties, and strong weather and aging resistance.

Defining Foam Adhesive Tape

A foam adhesive tape is a composite bonding material consisting of a compressible foam carrier—typically closed-cell polyethylene (PE), EVA, PVC, or acrylic foam—coated with pressure-sensitive adhesive on one or both sides. The foam core provides what thin film tapes cannot: gap filling on irregular surfaces, vibration damping, stress distribution, and light sealing in a single bonding layer.

Per Tesa’s industrial foam tape technical documentation, foam tapes provide “reliable adhesion, sealing, cushioning, insulation, and vibration damping across industries,” including automotive, electronics, appliances, transportation, and renewable energy. They “protect against dust and moisture intrusion, absorb impacts, compensate for uneven surfaces, and maintain performance even at extreme temperatures.”

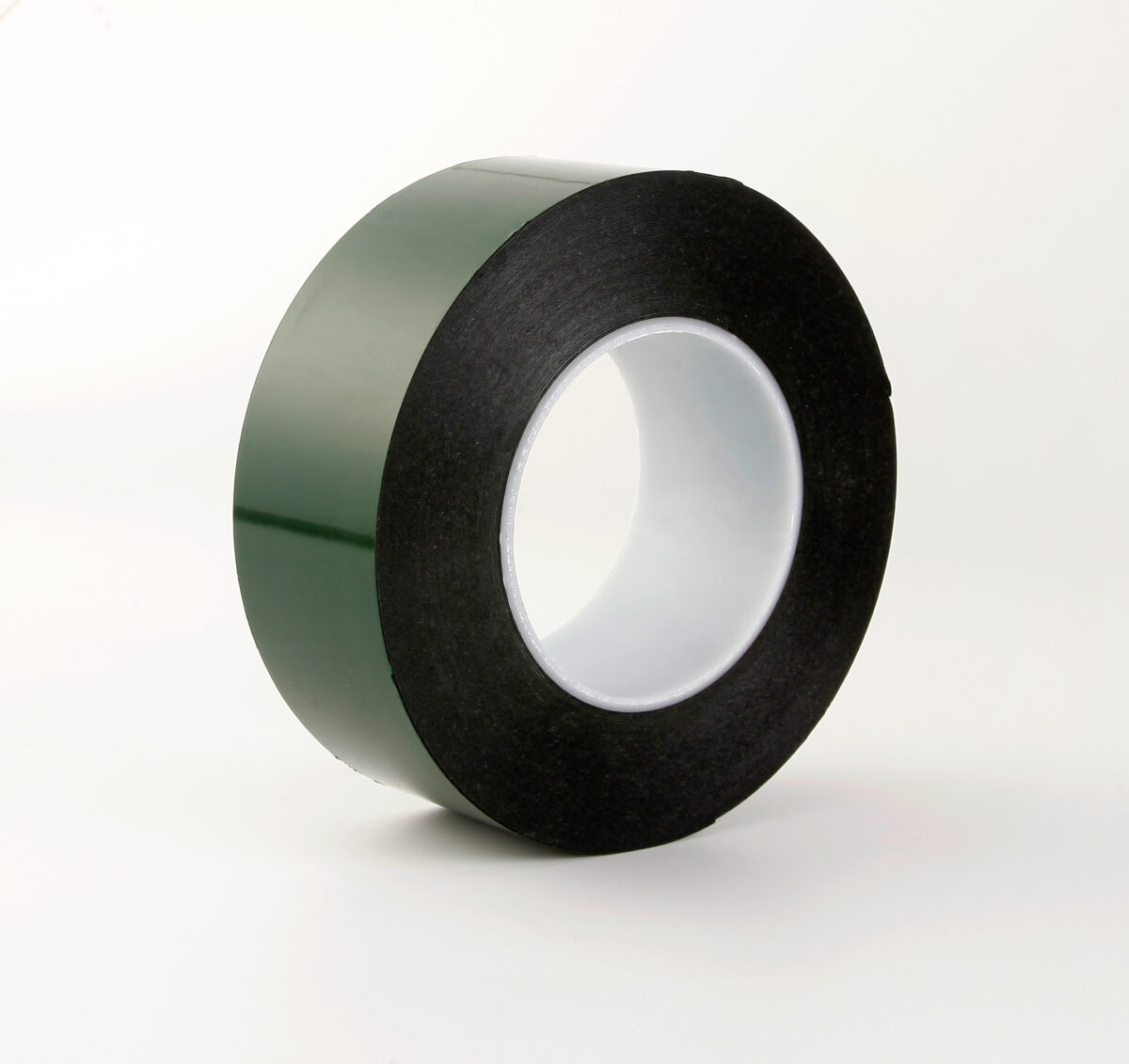

The FK0805 uses a black PE foam carrier with double-sided adhesive. It effectively fills gaps between bonding surfaces and is suitable for mounting and bonding on rough or uneven substrates. Additionally, it offers strong weather resistance, outstanding aging resistance, and stable temperature performance—making it a robust choice for both indoor and semi-outdoor B2B assembly applications.

Why Holding Power Testing Matters for Procurement

For procurement engineers, the single most important specification is not initial tack—it is holding power under sustained load. GB/T 4851-1998, Test method for holding power of pressure-sensitive adhesive tapes, established by the National Quality and Technical Supervision Bureau and drafted by the Shanghai Rubber Products Research Institute, defines exactly how this is measured.

According to the Shenzhen Standards Information Public Service Platform, GB/T 4851-1998 was published October 19, 1998, implemented April 1, 1999, and superseded by GB/T 4851-2014 on July 8, 2014. The standard’s definition is precise: holding power is “the ability of the adhesive tape to resist displacement when a specified weight is hung vertically along the length direction of the pressure-sensitive adhesive tape pasted on the adherend. It is expressed by the time for the specimen to move a certain distance or the distance moved within a certain time.”

The standard specifies the test apparatus in detail: a test plate made of 0Cr18Ni9 or 1Cr18Ni9Ti stainless steel (thickness 1.5-2.0 mm, width 40-50 mm, length 60-125 mm), and a rubber-covered steel roller (diameter approximately 84 mm, width approximately 45 mm, mass 2000g±50g).

The FK0805 is tested in accordance with GB/T 4851-1998—meaning its holding power performance is evaluated against this nationally recognized methodology, providing procurement teams with a verifiable data point for supplier qualification.

Commercial Comparison Table 1: PE Foam Double-Sided Tape Market Comparison

Parameter	FK0805 (F6 Tapes)	CTTape PE Foam DST	AxisTape Double-Sided PE Foam	Source
Foam carrier	Black PE foam	Closed-cell PE foam	PE foam	F6 / CTTape / AxisTape
Adhesive type	Double-sided (per FK0805 spec)	Acrylic adhesive	Acrylic adhesive	F6 / CTTape / AxisTape
Thickness range	Per product specification	0.15-3.0 mm (by grade)	0.3-3.0 mm	F6 / CTTape / AxisTape
Peel adhesion	Excellent bonding strength	25-30 N/cm²	≥18 N/in (Steel)	F6 / CTTape / AxisTape
Temperature range	Stable temperature performance	80°C long-term / 140°C short-term	-20°C to 120°C	F6 / CTTape / AxisTape
Cushioning & shock absorption	Excellent	Yes (foam core)	Yes.	F6 / CTTape / AxisTape
Sealing & waterproof	Reliable	Light sealing support	Good sealing	F6 / CTTape / AxisTape
Weather & aging resistance	Strong	Reference range typical	Stable under temperature change	F6 / CTTape / AxisTape
Holding power test	GB/T 4851-1998	Not disclosed	Not disclosed	F6
Color options	Black	Black / White	White / Gray / Black	F6 / CTTape / AxisTape

Sources: FK0805 product page; CTTape PE Foam Double Sided Tape; AxisTape Double Sided PE Foam Tape

The comparison reveals a clear differentiation: while competitors publish thickness ranges and temperature ceilings, the FK0805 is explicitly tested to GB/T 4851-1998—providing procurement teams with a standards-based verification of holding power performance. Its black PE foam construction with excellent bonding strength, cushioning, sealing, and strong weather/aging resistance positions it as a robust choice for B2B assembly applications.

Commercial Comparison Table 2: Application Fit & Performance Bands

Application	FK0805 Fit	3M 4492B (Reference)	Industry Typical (PE Foam DST)	Source
Rough/uneven substrate mounting	Suitable—fills gaps, bonds on rough surfaces	0.8 mm closed-cell PE, 14 N/cm peel to stainless steel	0.2-3.0 mm, ≥15 N/25 mm to steel	F6 / 3M TDS / NAIKOS
Automotive interior trim	Suitable—cushioning & shock absorption	Used for emblems, trim (per Tesa industrial applications)	Used for trim panel bonding, vibration damping	F6 / Tesa / NAIKOS
Electronics cushioning & sealing	Suitable—reliable sealing, weather resistance	Display module, internal component fixation	PCB cushioning, display frame sealing	F6 / 3M / NAIKOS
Signage & nameplate mounting	Suitable—strong bonding on irregular surfaces	Lens/display module mounting (per tesa)	Nameplate, emblem, decorative trim fixing	F6 / tesa / GMARK
Outdoor / weather-exposed	Suitable—strong weather & aging resistance	Tesa PE foam tapes for demanding outdoor applications	Weather-resistant -40°C to 90°C (per GMARK)	F6 / tesa / GMARK
Temperature stability	Stable temperature performance	Continuous exposure to foam stability	-20°C to +120°C (NAIKOS) / -20°C to +80°C (Senping)	F6 / 3M / NAIKOS / Senping

Sources: FK0805 product page; 3M 4492B Technical Data Sheet; Tesa PE foam tape industrial applications; NAIKOS PE foam tape specifications; GMARK PE foam tape; Senping PE foam tape

3M’s 4492B—a double-coated polyethylene foam tape—is a useful industry benchmark. Its technical data sheet shows 0.8 mm nominal thickness, 95 kg/m³ foam density, and 14 N/cm 90° peel adhesion to stainless steel after a 72-hour dwell. The FK0805’s explicit GB/T 4851-1998 testing and black PE foam construction with excellent bonding strength, cushioning, and strong weather/aging resistance provide B2B buyers with a standards-verified alternative.

Commercial Comparison Table 3: Total Cost of Ownership Factors

Factor	FK0805 (F6 Tapes)	Generic PE Foam DST (market average)	Premium Acrylic Foam (VHB-class)	Source
Bond line function	Gap filling + cushioning + sealing + bonding	Gap filling + bonding	Structural bonding, high shear	F6 / CTTape / Tesa
Foam type	PE foam (black, double-sided)	PE/EVA foam	Acrylic foam	F6 / CTTape / Tesa
Temperature ceiling	Stable temperature performance	80-140°C (CTTape)	80-120°C typical	F6 / CTTape
Holding power verification	GB/T 4851-1998 tested	Not typically disclosed	ASTM/DIN tested per supplier	F6 / CTTape
Weather & aging resistance	Strong weather, outstanding aging	Weather-resistant (GMARK -40°C to 90°C)	UV-stable, weather-resistant	F6 / GMARK / tesa
Supplier model	Factory-direct (F6 Tapes, Ningbo)	Mixed trading/manufacturing	Global distributor network	F6 / market
Customization	Per F6 Tapes OEM capability	Slitting and die-cutting are available.	Limited custom, standard SKUs	F6 / CTTape / AxisTape

Sources: FK0805 product page; CTTape; GMARK PE foam tape; Tesa foam tapes

The data tells a clear story: for applications requiring gap filling, cushioning, sealing, and reliable bonding on rough or uneven substrates—with verified holding power per GB/T 4851-1998—the FK0805 delivers a compelling value proposition. Premium acrylic foam tapes (VHB-class) serve higher structural load requirements; the FK0805 serves the broad middle market of industrial assembly, automotive interior, electronics, signage, and construction applications where PE foam’s conformability and compression recovery are the primary engineering need.

Application Scenarios for FK0805

Based on the product’s documented capabilities, the FK0805 is ideally suited for:

• Mounting and bonding on rough or uneven substrates—The PE foam core effectively fills gaps between bonding surfaces
• Shock-absorbing and cushioning applications—Excellent cushioning and shock-absorbing performance protects components
• Sealing and waterproof bonding—Reliable sealing and waterproof properties block moisture and dust ingress
• Weather-exposed assemblies—Strong weather resistance and outstanding aging resistance ensure long-term durability
• Temperature-variable environments—Stable temperature performance maintains bond integrity across thermal cycles

bonding, and per Tesa’s industry analysis, foam tapes in this category serve automotive (emblem mounting, trim attachment, and interior panel bonding), electronics (lens mounting, display module cushioning, and component fixation), appliances (display, emblem, and trim mounting), building components (sealing and mounting in windows, doors, and elevators), and solar/wind energy (frame bonding and junction box fixation).

Storage and Application Best Practices

To preserve adhesive properties and achieve optimal bond formation:

• Store in a cool, dry place away from direct sunlight (per industry standard 15-30°C, 50-70% RH)
• Ensure substrate surfaces are clean and dry before application—use isopropyl alcohol or mild degreaser to remove oil, dust, and residue
• Apply firm, even pressure across the entire bonded area (a hand roller works best)
• Allow 24 hours for full shear strength development
• For outdoor applications, verify temperature compatibility with the stable temperature performance specification

Why PE Foam Carrier Matters for B2B Assembly

The engineering advantage of PE foam as a tape carrier is well-documented. Per F6 Tapes’ own technical analysis, foam mounting tape provides:

• Stress distribution: Absorbs internal stresses caused by thermal expansion and contraction
• Vibration damping: Viscoelastic foam dissipates mechanical energy, reducing noise and wear
• Sealing properties: High-density, closed-cell foams create an airtight and watertight seal
• Gap filling: A conformable carrier allows 100% contact even on non-flush mating surfaces

NAIKOS’s engineering guide adds that PE foam tape “provides distributed stress bonding rather than point-load fixation. This reduces stress concentration on substrates and improves long-term structural stability in lightweight assemblies—a crucial advantage over mechanical fasteners like screws and rivets.

FAQ

Q1: What is foam adhesive tape in simple terms?

A: It is a composite bonding material consisting of a compressible foam carrier—typically closed-cell polyethylene (PE), EVA, PVC, or acrylic foam—coated with pressure-sensitive adhesive on one or both sides. The foam core provides gap filling on irregular surfaces, vibration damping, stress distribution, and light sealing that thin film tapes cannot deliver.

Q2: How is holding power tested, and why does it matter for procurement?

A: Holding power is measured per GB/T 4851-1998, the Chinese national standard drafted by the Shanghai Rubber Products Research Institute. The test hangs a specified weight on a vertically mounted tape sample and measures resistance to displacement—expressed as time-to-failure or distance moved within a set time. The FK0805 is tested in accordance with GB/T 4851-1998, giving procurement engineers a verifiable, standards-based data point for supplier qualification. Note: GB/T 4851-1998 was superseded by GB/T 4851-2014 in July 2014 but remains a recognized methodology for holding power evaluation.

Q3: When should I choose a PE foam double-sided tape like FK0805 over other foam types?

A: Choose PE foam DST when your application requires (1) gap filling on rough or uneven substrates; (2) cushioning and shock absorption; (3) reliable sealing and waterproof properties; (4) strong weather and aging resistance for semi-outdoor use; (5) cost-effective bonding at 0.15-3.0 mm bond line thickness. For heavier structural loads with higher shear requirements, acrylic foam tapes (VHB-class) may be more appropriate. For superior impact resistance and cushioning, EVA foam tapes serve better.

Q4: What temperature range can FK0805 withstand?

A: The FK0805 offers stable temperature performance. For comparison, industry PE foam DST typically operates from -20°C to +120°C (AxisTape, NAIKOS) with short-term peaks to 140°C (CTTape). When evaluating your application, consider both continuous operating temperature and short-term peaks, and consult with our technical team for project-specific guidance.

Q5: How does FK0805 compare to 3M 4492B?

A: 3M 4492B is a 0.8 mm double-coated PE foam tape with 95 kg/m³ foam density and 14 N/cm 90° peel adhesion to stainless steel (per 3M’s technical data sheet). The FK0805 offers black PE foam construction with excellent bonding strength, cushioning, sealing, waterproof properties, and strong weather/aging resistance and is tested per GB/T 4851-1998. For B2B buyers, the FK0805 provides a factory-direct alternative with standards-verified holding power and strong weather/aging performance.

Q6: Can the FK0805 be customized for my production line?

A: Yes. F6 Tapes supports OEM customization, including thickness selection, width slitting, roll length, and die-cut converting—consistent with industry capabilities for PE foam DST (CTTape, AxisTape, and NAIKOS all support slitting, sheets, pads, and die-cut formats). Contact our technical team with your substrate types, gap dimensions, load requirements, and volume for a tailored specification.

Q7: What substrates does FK0805 bond to effectively?

A: The FK0805 is suitable for mounting and bonding on rough or uneven substrates. PE foam DST generally bonds well to metals (aluminum, stainless steel), plastics (ABS, PC), glass, painted surfaces, and composite materials. For low-surface-energy plastics, consult our technical team regarding surface preparation and primer requirements.

Making the Procurement Case

For B2B buyers evaluating foam adhesive tape, the engineering rationale is clear: verify the foam carrier type, confirm the holding power test method and result, match the temperature envelope to your application, and validate weather/aging resistance for your operating environment. The FK0805 Black PE Foam Double Sided Tape delivers on all four:

• PE foam carrier: Black closed-cell PE foam for gap filling, cushioning, and sealing
• Double-sided adhesive: Excellent bonding strength on rough and uneven substrates
• Holding power verification: Tested in accordance with GB/T 4851-1998
• Weather & aging resistance: Strong weather resistance, outstanding aging resistance, stable temperature performance
• Application fit: Ideal for mounting on rough/uneven substrates requiring shock absorption, sealing, and waterproof bonding

When your next assembly project requires reliable, permanent bonding with gap-filling and cushioning capability, understanding foam adhesive tape​ selection criteria is the first step. The next step is matching your specific substrates, gap dimensions, load requirements, and environmental conditions to the right product configuration.

To explore how FK0805 Black PE Foam Double Sided Tape would perform in your application, visit our product page at https://f6tape.com/product/fk0805-black-pe-foam-double-sided-tape/. Our technical team can provide a detailed specification sheet, arrange sample evaluation, and deliver a customized quotation based on your production volume and dimensional requirements. Reach out today, and let us help you validate the right foam adhesive tape solution for your manufacturing line.

References

1. FK0805 Black PE Foam Double Sided Tape product specifications and technical data. F6 Tapes. https://f6tape.com/product/fk0805-black-pe-foam-double-sided-tape/
2. GB/T 4851-1998, Test method for holding power of pressure-sensitive adhesive tapes. National Quality and Technical Supervision Bureau, drafted by Shanghai Rubber Products Research Institute, published October 19, 1998, implemented April 1, 1999, superseded by GB/T 4851-2014. Shenzhen Standards Information Public Service Platform: http://standard.sist.org.cn/StdSearch/stdDetail.aspx?AppID=GB/T%204851-1998
3. GB/T 4851-1998 full text preview (definitions, test apparatus). 准行天下: https://ima.qq.com/wiki/?shareId=9c08191f314a7709d4df0207d84dfec1b45dbb3bbac3dc6af88c82935bd4313b
4. PE Foam Double Sided Tape product specifications. CTTape. https://cttape.com/product-categories/double-sided-tape/pe-double-sided-foam-tape
5. Double-sided PE Foam Tape product specifications. AxisTape. https://www.axistape.com/product/double-sided-pe-foam-tape
6. 3M Double Coated Polyethylene Foam Tape 4492B Technical Data Sheet. 3M. https://multimedia.3m.com/mws/media/2366462O/3m-double-coated-polyethylene-foam-tape-4492b.pdf
7. Foam tapes for global industry—technical applications and performance characteristics. tesa. https://tesa.com/en-gb/industry/products/foam-tapes
8. How to Select PE Foam Double-Sided Tape for Structural Bonding Applications. NAIKOS Adhesive Tapes. https://www.naikos-adhesive-tapes.com/news/how-to-select-pe-foam-double-sided-tape-for-st-85577329.html
9. PE Foam Tape: High-Performance Solution Across Multiple Industries. GMARK Foam. https://www.gmarkfoam.com/news/pe-foam-tape-high-performance-solution-across-multiple-industries
10. Double-sided PE foam tape product specifications. Senping Technology. https://www.senpingtech.com/product/double-sided-pe-foam-tape-strong-bonding-weatherproof-seal
11. Foam Mounting Tape: Industrial Applications & Selection Guide. F6 Tapes. https://f6tape.com/news/foam-mounting-tape-industrial-applications-selection-guide/
